Anilox Cleaning Systems | Flexo Printing Supplies

Phoenix Series - Ultrasonic Anilox Cleaning | Sonic Solutions



Here are the top reasons why ultrasonic cleaning is the choice of flexographic printers for cleaning anilox rollers and sleeves.  The Phoenix Series is Sonic Solutions' latest development in ultrasonic anilox roller and sleeve cleaning systems.  The Phoenix Series was developed for the specific needs of cleaning anilox rollers and sleeves for flexographic printing presses.  From wide-web to narrow-web printing, Conversource has the right-sized system to meet your needs.



The Phoenix Series includes the following enhancements:

Features:

  • Safer Level of Ultrasonics - 68 kHz - to generate smaller cavitation bubbles to clean the smaller cells of higher line-count anilox rolls.
  • Modified Power Generators - now external, interchangeable and easily replaceable.
  • Safer Heating System - increased reliability with fixed thermostat settings and low-level automatic shutoff.
  • Long-Lasting Equipment - Enhanced with replaceable ultrasonic transducers as well as timing pulleys with bearings.
  • Standard Size Equipment Configuration - to coincide with previous systems.
  • Fully Customizable Sizes - no anilox roll or sleeve is too large - from a few inches to 10 feet - from 1 roll to 8 rolls at a time - we can economically customize a system to fit your needs.

Advantages:

  • More Complete Cleaning - of all anilox rolls from lower-line count to even the highest line-count anilox rolls
  • More Complete Recovery - of full cell volume of anilox rolls
  • Built to Last - with increased reliability
  • Easier Maintenance - easier replacement of routine maintenance parts

Benefits:

  • Improves Print Quality - by restoring excellent ink cell volumes
  • Reduces Defects - in color reproduction
  • Allows for faster job changeovers on press - improving overall productivity



Individual System Details Below

PX-721 Sonic Solutions | Ultrasonic Anilox Sleeve Cleaning



Specifications:

  • Holds 18 Gallons(68L) of solution
  • 14-Gauge, 72" long stainless-steel tank
  • 120 volt, 60 Hz electrical equipment (optional 240 volt)
  • Thermostat fixed heating
  • Low-liquid protection shut off
  • Tank includes stainless-steel cover and ball valve drain
  • Frequency Sweep Technology
  • Stainless steel slide bar system - infinitely adjustable
  • Two (2) external ultrasonic generators with 30-minute timer
  • Delivers 1,500 watts of power at 68 kHz
  • 1-Year Limited Warranty

Bonus:

  • Ships with three (3) FREE 6-Gallon SONIC KLEEN cleaning solution

Suggested Application:

  • Cleans up to one (1) anilox sleeve at a time
  • Any size anilox sleeve up to 70"

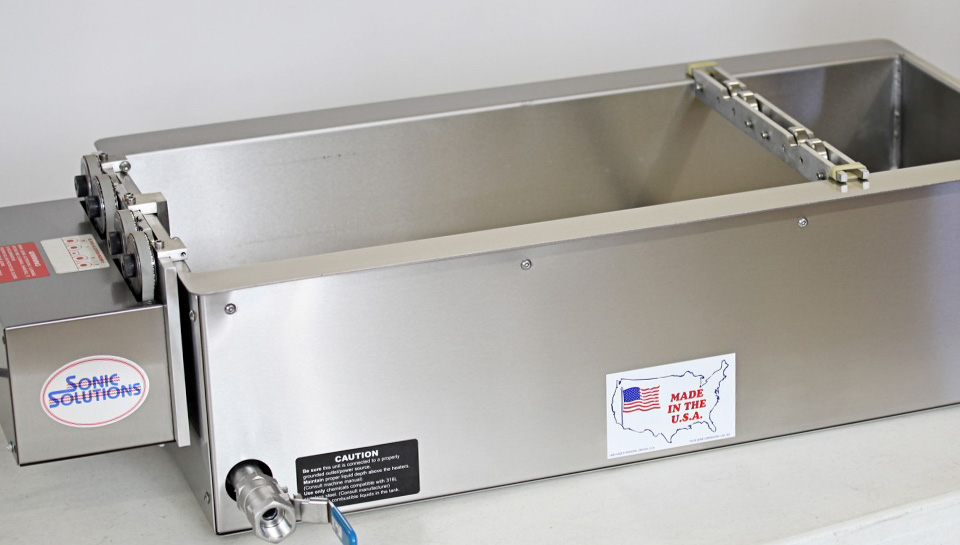

PX-302 Sonic Solutions | Ultrasonic Anilox Roll Cleaning



Specifications:

  • Holds 9 Gallons(34L) of solution
  • 14-Gauge, 30" long stainless-steel tank
  • 120 volt, 60 Hz electrical equipment (optional 240 volt)
  • Thermostat fixed heating
  • Low-liquid protection shut off
  • Tank includes stainless-steel cover and ball valve drain
  • Frequency Sweep Technology
  • Stainless steel slide bar system - infinitely adjustable
  • External ultrasonic generator with 30-minute timer
  • Delivers 500 watts of power at 68 kHz
  • 1-Year Limited Warranty

Bonus:

  • Ships with two (2) FREE 6-Gallon SONIC KLEEN cleaning solution

Suggested Application:

  • Cleans up to two (2) anilox rolls at a time
  • Any size anilox roll up to 29"



PX-202 Sonic Solutions | Ultrasonic Anilox Roll Cleaning



Specifications:

  • Holds 6 Gallons(23L) of solution
  • 14-Gauge, 19-3/4" long stainless-steel tank
  • 120 volt, 60 Hz electrical equipment (optional 240 volt)
  • Thermostat fixed heating
  • Low-liquid protection shut off
  • Tank includes stainless-steel cover and ball valve drain
  • Frequency Sweep Technology
  • Stainless steel slide bar system - infinitely adjustable
  • External ultrasonic generator with 30-minute timer
  • Delivers 500 watts of power at 68 kHz
  • 1-Year Limited Warranty

Bonus:

  • Ships with one (1) FREE 6-Gallon SONIC KLEEN cleaning solution

Suggested Application:

  • Cleans up to two (2) anilox rolls at a time
  • Any size anilox roll up to 19"



PX-121 Sonic Solutions | Ultrasonic Anilox Roll Cleaning



Specifications:

  • Holds 3 Gallons(12L) of solution
  • 14-Gauge, 12" long stainless-steel tank
  • 120 volt, 60 Hz electrical equipment (optional 240 volt)
  • Thermostat fixed heating
  • Low-liquid protection shut off
  • Tank includes stainless-steel cover and ball valve drain
  • Frequency Sweep Technology
  • Stainless steel slide bar system - infinitely adjustable
  • External ultrasonic generator with 30-minute timer
  • Delivers 250 watts of power at 68 kHz
  • 1-Year Limited Warranty

Bonus:

  • Ships with one (1) FREE 6-Gallon SONIC KLEEN cleaning solution

Suggested Application:

  • Cleans one (1) anilox roll at a time
  • Any size anilox roll up to 10"



Ultrasonic Cleaning Systems | How They Work


Ultrasonic cleaning uses cavitation bubbles induced by high frequency pressure (sound) waves to agitate a liquid. Here is why flexographic printers around the world choose ultrasonic cleaning as their go-to solution for cleaning anilox rollers and achieve the highest quality print from their flexo presses.
